Product performance:

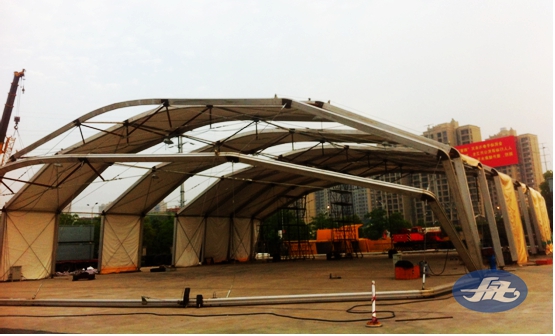

Is a rapid disassembly, mobile transport of the assembly-type hangar, mainly for ordinary aircraft, helicopters or other large equipment in bad conditions for storage, maintenance, maintenance.
Main parameters:
Model number | HZ16 | HZ20 | HZ24 | HZ30 |
Width/m | 16 | 20 | 24 | 30 |
Standard length/m | 20 | 28 | 30 | 40 |
Module length/m | 4 | 4 | 4 | 4 |
Height/m | 8.1 | 8.9 | 9.6 | 10.4 |
Weight/t | 10 | 18 | 28 | 40 |
Wind load（km/h） | 135 | 135 | 135 | 102 |
Snow load（kg/m²） | 100 | 100 | 100 | 60 |
Erection time | 8h/16人 | 16h/16人 | 24h/16人 | 32h/16人 |
