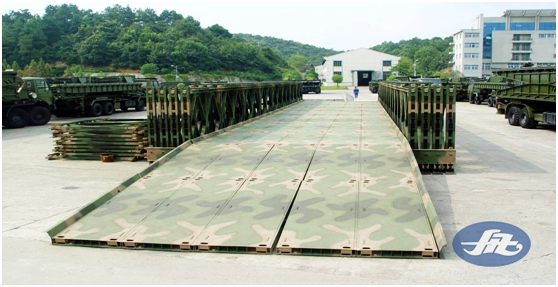

HZCB200 fabricated highway steel bridge

release time:

view count:



Product Performance:

Fabricated Highway Steel Bridge, also known as Bailey Bridge, can be used to build temporary or semi-permanent bridge, widely used in all kinds of construction trestle, suspension bridge, suspension bridge, construction platform, construction of cast-in-place formwork support, large-tonnage Gantry Crane, bridge-erecting machine. Using Modular design, components have good interchangeability, reusable, simple structure, fast erection, convenient transportation.

Main parameters:

Design Span

The single span is 54.864 meters (180 feet) and the length of the bridge can be varied by 3.048 meters

Design load

Class-10, Class-15, Class-20, Class-50, Pedrail-80, Class-i, Class-ii, HS-15, HS-20, HS-25

Truss Height


Bridge Deck

Wooden or steel deck, Standard Single Lane 3.15 m, extra wide single lane 4.2 m, double lane 7.35 M

Maximum weight of individual component

Single Lane: maximum weight not more than 600kg

Two Lanes: maximum weight not more than 1700kg


Width of external pavement0.75m,1m,1.2m
