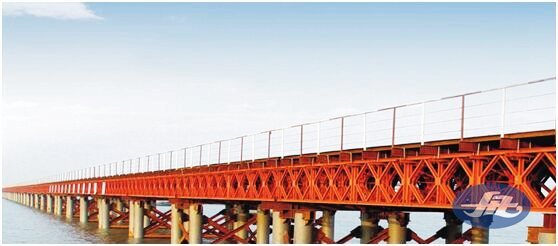

HZ321 Fabricated Highway Steel Bridge

release time:

view count:



Product Performance:

 Fabricated Highway Steel Bridge, also known as Bailey Bridge, can be used to build temporary or semi-permanent bridge, widely used in all kinds of construction trestle, suspension bridge, suspension bridge, construction platform, construction of cast-in-place formwork support, large-tonnage Gantry Crane, bridge-erecting machine. Using Modular design, components have good interchangeability, reusable, simple structure, fast erection, convenient transportation

Main parameters:

设计跨度 Design Span

The maximum span of a single span is 60.96 m (200 ft) . The length of the bridge may vary by 3 M

Design load

Class-10, class-15, class-20,50 tons of track, Class-i, class-ii highway

Truss Height


Bridge Deck

Wooden or steel deck, 3.7 m single lane

Maximum weight of individual component

Single Lane: maximum weight not more than 400kg


Can Be configured as needed
